Rubicon Polygraph
We are the official exclusive dealers in Ukraine!

H History and Clients
The concept emerged in 2013 among a group of practicing polygraph examiners and engineers who sought to develop a device capable of competing with leading global brands—**Lafayette, Axciton, and Stoelting**—while remaining affordable and fully adapted to the realities of the Ukrainian context.
The first RUBICON models were created in 2014; the device underwent a series of tests at higher education institutions and security agencies, and in 2015, it received **certification of compliance with the DSTU 8692:2016 standard**.
Since then, RUBICON has become the official standard for Ukrainian polygraph examiners.

C Channels and sensors

GSR Channel
The GSR (Galvanic Skin Response) channel measures the electrical conductivity of the skin (changes in the skin’s electrical potential), which fluctuates in response to a person’s emotional reactions.

Sensor Specifications:
- Two detachable plates (50×50 mm)
- Silver-plated contact surface (15 µm)
- Double-sided Velcro strap (15 cm)
- Double-shielded cable (150 cm)
- Cable connector: 3.5 mm jack
- Price: 110 Euros

PPG Channel
PPG Channel – a channel for peripheral cardiovascular activity (photoplethysmogram) that records changes in blood volume within the capillaries of the fingers, reflecting the functioning of the cardiovascular system.

Sensor specifications:
- Removable housing (photopolymer plastic)
- Photodiodes fixed within the housing
- Double-sided Velcro strap (15 cm)
- Double-shielded cable (150 cm)
- Cable connector: 3.5 mm jack
- Price: 110 Euros

Two Respiration Channels
Two Respiration Channels – the polygraph records respiration using two separate channels: thoracic (chest) and diaphragmatic (abdominal). These show changes in the rhythm and depth of breathing.

Sensor Specifications:
- Silicone pneumatic tube (20 cm)
- Fasteners made of photopolymer plastic
- Stainless steel mount
- Nickel-plated chain (150 cm)
- Silicone connecting tube (150 cm)
- Price: 110 Euros

ART Channel
ART Channel – a channel for arterial pressure and central cardiovascular activity. It monitors blood pressure changes in real time.

Pneumatic cuff or piezoelectric element (depending on the polygraph model):
- Plastic housing or medical-grade cuff
- Contact disc with a piezoelectric element
- Dual cable or silicone tubing with a medical-grade inflation bulb
- 3.5 mm connector or pneumatic connector
- Price: 90 / 150 Euros

TRM Channel
TRM Channel — a channel for physical activity (tremor) used for detecting countermeasures; it records the slightest body movements, such as hand tremors, muscle tension, or shifts in body position.

Sensor specifications:
- Removable housing (polymer fabric)
- Removable cover
- Double-shielded cable (150 cm)
- Cable connector: “Jack” (3.5 mm)
- Price: 90 Euros

MKF Channel
MKF Channel – an acoustic activity channel in the form of a microphone; it records sound vibrations of the examinee’s voice as well as sound artifacts.

Sensor specifications:
- Plastic housing
- Removable cover (polyurethane foam)
- Shielded cable (180 cm)
- Cable connector: “Jack” (3.5 mm)
- Price: 20 Euros

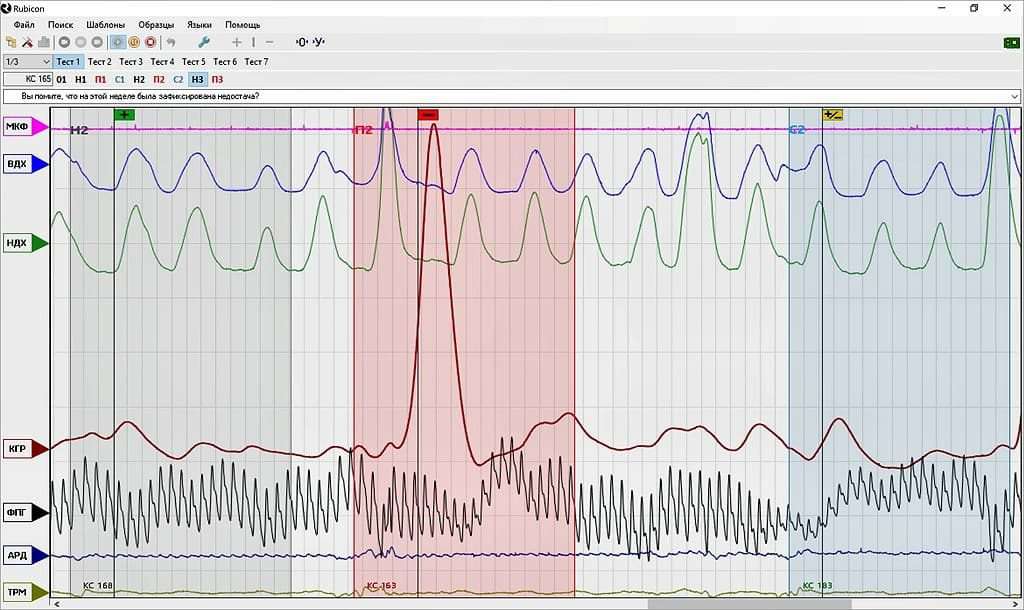

R "Rubicon" Software Polygraph

M Rubicon polygraph models and their cost
![]()
RUBICON Polygraph, Model “2”
3,800 Euros
The RUBICON 2 is a reliable entry-level model of a Ukrainian-made polygraph, designed for professional use in psychophysiological research, as well as for the training and practice of polygraph examiners.
The device is equipped with all essential measurement channels: respiration (thoracic and abdominal), blood pressure, photoplethysmogram, electrodermal activity, tremor, and a microphone. This configuration ensures comprehensive recording of key human physiological reactions.
![]()
RUBICON Polygraph, Model “3”
3,800 Euros
The RUBICON 3 is a professional Ukrainian-made polygraph. This model features a completely redesigned printed circuit board, built to meet modern electronic standards, and incorporates advanced, next-generation sensors that ensure even clearer and more precise recording of physiological signals.
The device offers superior channel protection against electrical interference, enhanced sensor sensitivity, and high-speed data processing. Thanks to the use of new microcontrollers and optimized algorithms, the RUBICON 3 operates reliably even under challenging conditions—such as during field examinations, in high-stress environments, or during prolonged use.
In production since 2024.
RUBICON Polygraph, Model “4”
4,100 Euros
The RUBICON 4 is the most advanced and powerful model in the Ukrainian-made polygraph lineup, designed for professional examiners, intelligence agencies, and scientific institutions that demand maximum accuracy, reliability, and control over the testing process.
This model incorporates all the technical enhancements of previous versions, elevating signal precision to an entirely new level. The RUBICON 4 features three dedicated channels for detecting countermeasures, enabling the identification of even the slightest attempts by a subject to deliberately influence the test results.
The device is equipped with an upgraded circuit board featuring a higher sampling rate, which provides ultra-precise detail for every signal. Each sensor in the RUBICON 4 is the result of precise calibration and the use of premium-grade medical materials, ensuring both comfort and high measurement stability.
In production since 2025.
M Each model may have the letter “M” in its name: RUBICON 2M, RUBICON 3M, and RUBICON 4M.
These polygraphs feature a blood pressure sensor in the form of a cuff (instead of a piezo sensor), similar to “Lafayette” and “Axciton” polygraphs.
Price for these polygraphs (+300 Euros):
2M – 4,100 Euros; 3M – 4,100 Euros; 4M – 4,400 Euros.

P Premium package: +1000 Euros for any polygraph.
Includes:
- Vandal-proof case with a pressure equalization valve for air travel
- Automatic blood pressure monitor for measuring the respondent’s blood pressure
- Automatic breathalyzer for use when signs of alcohol intoxication are present
- Additional tremor sensor for professional detection of countermeasures by the respondent
- Professional Logitech C920 camera for recording examination videos
- Extended 3-year warranty (standard warranty is 1 year)

Discounts:
|
|
C Compliance with DSTU 8692:2016
Compliance of a polygraph with the state standard DSTU 8692:2016, “Polygraphs: General Technical Requirements and Test Methods,” guarantees that the equipment accurately, consistently, and safely measures a person’s physiological reactions.
A DSTU (State Standard of Ukraine) is an official regulatory document that establishes the minimum acceptable technical, metrological, safety, and quality requirements for products. For polygraphs, it defines mandatory parameters regarding accuracy, signal protection, sensor reliability, and data processing algorithms. A polygraph that complies with the DSTU 8692:2016 standard:
- offers verified metrological reliability of results;
- ensures measurement stability during testing;
- meets requirements for electrical safety and component quality;
- is authorized for use in forensic expert examinations and official professional activities within Ukraine.
Adherence to the DSTU standard is not merely a formality; it is an indicator of professionalism, trustworthiness, and the legal legitimacy of the polygraph.

C Certificates and Documents of Conformity
RUBICON polygraphs possess all the necessary Ukrainian and European documentation regarding quality and compliance with standards.

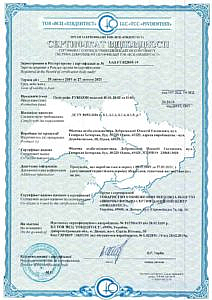

Ukrainian Certificate of Conformity

European Certificate of Conformity

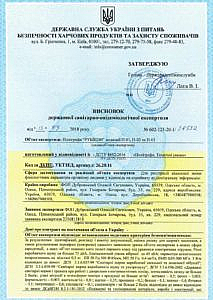

Sanitary-Epidemiological Service Conclusion

Declaration of Conformity

R RUBICON polygraphs are the most widely used among polygraph examiners in Ukraine.
90% of polygraph examiners working in law enforcement agencies, government departments, expert institutions, and private companies use these specific polygraphs.
The best proof that Rubikon polygraphs are the most widely used in Ukraine is the “Prozorro” public procurement platform.



Sole Proprietor V.A. Vedmid is the exclusive dealer in Ukraine for the sale of all models of RUBICON polygraphs, as well as polygraph sensors (with T.M. Chepurko serving as a sub-dealer).
The sole exclusive dealer in Ukraine for the sale of all RUBICON polygraph models, as well as polygraph sensors, is FOP Vedmid V.A. (with FOP Chepurko T.M. serving as a sub-dealer).
+38 063 966 9000

Information from the manufacturer’s website:
Consequences of purchasing a Rubicon polygraph from “gray” (unauthorized) dealers, or buying used units or devices imported from other countries:
- No access to warranty or post-warranty service;
- Examinations conducted on non-official equipment are automatically considered invalid;
- Risk of purchasing a low-quality copy—a counterfeit;
- No option for a replacement unit during repairs or servicing. If you purchase a polygraph through official channels, a replacement unit will be provided during repairs, ensuring you do not lose any working time. “Gray” dealers will never provide replacement equipment, nor will they perform repairs on your device.
Polygraphs and equipment are sold exclusively through the official dealer in Ukraine, ensuring there are no additional markups.
Payments are made in Ukrainian Hryvnia (UAH) at the current market exchange rate.
If you find a lower price elsewhere, we will compensate you for the difference—at double the amount!
If you are offered a Rubicon polygraph—whether used or a new, unofficial unit—call an official dealer to get a guaranteed better offer.
+38 096 966 9000
Volodymyr Vedmid, Head of NAPU
Be vigilant!
The vast majority of foreign-made polygraphs (such as Axciton, RIF, Krys, Barrier, Diana, Lafayette, Limestone, Stoelting, Epos, and others) are imported into Ukraine as contraband—without declaration or customs clearance.
By purchasing a smuggled polygraph, you become an accomplice to an offense, and any findings derived from the use of such “grey-market” devices will be deemed invalid.
Always request the following documents from the seller of the polygraph:
- The technical passport for the polygraph, the software, and the user manual in Ukrainian (otherwise, the device will not comply with the DSTU 8692:2016 standard);
- Proof of purchase—such as an acceptance-transfer act or a cash register receipt (these must clearly state the specific business entity that sold you the equipment and the price paid);
- Customs clearance documentation and proof of payment of customs duties;
- A declaration of conformity and sanitary-epidemiological service (SES) certificates in accordance with Ukrainian standards.
The manufacturer of “RUBICON” polygraphs is O. Ye. Dubrovskyi (registered as a sole proprietor).
